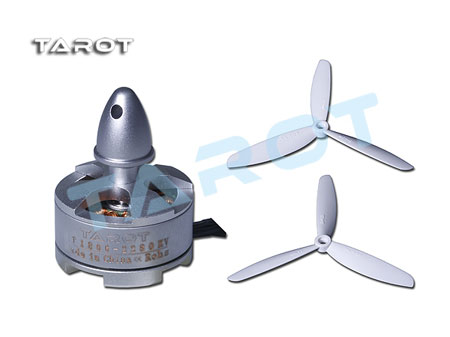

Tarot MT1806 positive self-locking screw motor / silver cap - cw

Price Unavailable

  • Model: FYTL300H1
  • Shipping Weight: 35 grams
  • Manufactured by: Tarot



Tarot 1806-2280KV self-locking of the brushless motor is suitable for TAROT Mini 200 (TL200A / TL200B) TAROT Mini 250 (TL250A / TL250B) and other multi-axis through the machine. Tarot 1806 brushless motor is optimized to lower the center of gravity, more in line with multi-rotor aircraft crossing design requirements.
MT1806 brushless motor using 0.20mm ultra-thin high-efficiency silicon steel used to make thin silicon steel motor with low heat, high efficiency characteristics. Propeller mount integrated with the machine cover molding, forming one threaded spindle motor lid, can be installed directly paddle clips (native propeller shaft folder structure) its concentricity can get the best guarantee. High efficiency motors shelters scattered mat initiative designed to achieve lower operating temperature means higher efficiency.
MT1806 has a balancing performance brushless motor, the motor before every single shipment whole system have been detected with high precision balancing test to ensure stability when the motor is running. Motor base for multiple sets of mounting holes (holes pictured), compatible with mainstream rack-mount on the market today, retains the look and consistency of conventional motor, high protective effect of coils suspended play.





  • Lithium Support section number: 2-3S
  • Maximum thrust: 460g
  • White resistance: ≤4mΩ
  • Stator diameter: 18mm
  • No-load current: 0.4A-0.7A
  • Speed: 2280KV ± 5%
  • Motor poles: 14
  • Motor Length: 26.5mm
  • Motor Weight: 18g




  • Clockwise motor x1
  • 5-inch 3 Leafs propeller x 2



  • This product was added to our catalog on Tuesday 27 January, 2015.
