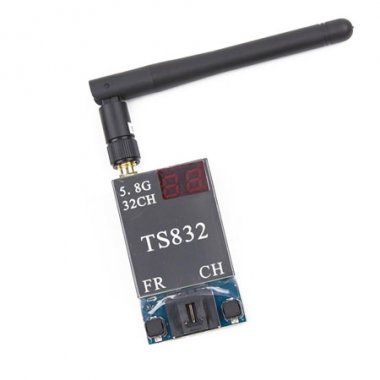

5.8GHz 32CH A/V 600mW Transmitter (TS832)

Price Unavailable

  • Model: PM-RC832EM
  • Shipping Weight: 68 grams
  • Manufactured by: PM



The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at 21g, it’s perfect for a wide range of aircraft!

  • 32 channels: Cover A, B, E bands and F bands
  • Two switching buttons for the band and channel
  • Two digits display for?the band and channel
  • Power off memory for last channel and band
  • Dual Independent video and audio signal outputs





  • Power input: 7.4-16V (3S Lipo / ~12v suggested)
  • Outputs 12v (matches input voltage)
  • Transmitting power: 600mA
  • Antenna gain: 2dBi
  • Working current: 220mA at 12V
  • Video format: NTSC/PAL
  • Video bandwidth: 8M
  • Audio bandwidth : 6.5M
  • Dimension: 54x 32x 10mm (excluding antenna)
  • Weight: 22g
  • Antenna connection: SMA (not RP-SMA)


  • TX832 X 1
  • Antenna (2db) x 1
  • Power Cable for TX832 x 1
  • User Manual



This product was added to our catalog on Monday 28 July, 2014.
