Tarot 4114/320KV Multi-axis brushless motor / Black TL100B08-01	Login for price
Price Unavailable

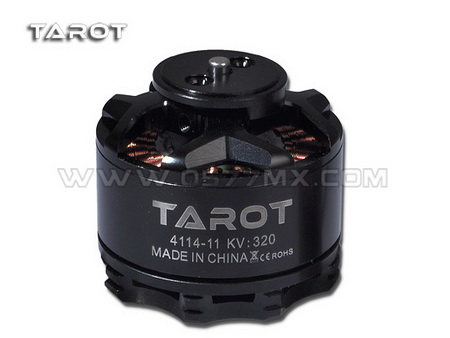

Tarot 4114/320KV Multi-axis brushless motor / Black TL100B08-01

larger image

Model: FYTL100B08-01
Shipping Weight: 193 grams
Manufactured by: Tarot

Descriptions:

CNC processed, smooth surface and well-balanced

4114/320KV Brushless Motor is designed for multi-copter

Brand-new turbofan cover, which provide good heat dissipation effect

Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.

Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.

Specifications:

Motor peripheral diameter: 46.00mm

Stator diameter: 41.0 mm

Stator end thickness: 14.0 mm

Stator end: 24N

Motor number of poles: 22P

Diameter: 0.31mm

Per volt speed: 320 RPM / Volt Of 22.2V empty annexed current: 0.5 Amps

Motor internal resistance: 126 mΩ

Motor Weight: 148 Grams

Gear shaft mounting diameter: ¢ 4.0 mm

Motor Length: 32.0 mm

Motor shaft total length: 37.0 mm
