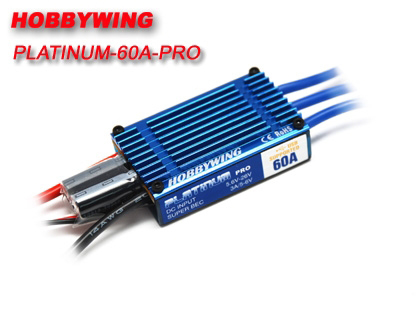

HobbyWing Platinum 60 A PRO ESC
Login for price
Price Unavailable
larger image
Model: FYTLP60APRO
Shipping Weight: 88 grams
High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency
Wide-open heat-sink design to get the best heat dissipation effect
With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
Smooth, linear, quick and precise throttle response.
The output voltage of the built-in BEC is switchable by user programming (5.25V or 6.0V).
Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
Perfect governor mode for helicopter.
The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box
User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
Intput:
2-6 cells lithium battery or 5-18 cells NIMH battery
Output:
Continuous 60A, burst 90A up to 10 seconds
BEC:
Switching mode DC-DC regulator. 3A@5.25V or 3A@6V switchable by user progromming
Control Signal Transmission:
Optically coupled system
Max Speed:
210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BL motor
Size:
70mm (L) * 34mm (W) * 16mm (HV)
Weight:
68g
Supported highest motor speed: 210000 RPM(2 poles), 70000 RPM(6 poles), 35000 RPM(12 poles)
Smooth and accurate speed control, excellent throttle linearity .
Extreme low resistance, super current endurance.
XMotorTM optimized timing advance.
High rate (8 KHz) switching (PWM).
Cutoff can be programmed for motor stop or reduced power.
Brake/No Brake operation. Stop folding props cold or let fixed props freewheel.
Full protection features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection.
3 startup modes: Normal / Soft / Super-Soft startup, can be used for both fixed-wing aircraft or helicopter models.
Throttle range can be configured, fully compatible with all market available transmitters.
Microprocessor and BEC(Battery Elimination Circuit) use separate voltage regulator IC , with good anti-jamming capability.
Programming card is ready!(for easily programming the ESC on field) .
Programming Instructions
.
Cells, NiCd/NiMH
LiPo:
6
-12, 7.2-14V
2-4,7.4 -14.8V
Max Output
18
A Cont.
25A Surge
BEC
5V / 2A
Weight ( W/Wires)
19g
Dimensions:
1.85
x 1.02 x 0.27in
(47 x 26 x 7mm)
Login for price
Write Review
This product was added to our catalog on Wednesday 24 August, 2011.
